For factories and large dessert producers, it is extremely important that industrial waffle cone makers can produce continuously and ensure a stable, high-quality output.
Industrial Waffle Cone Making Machine Principle

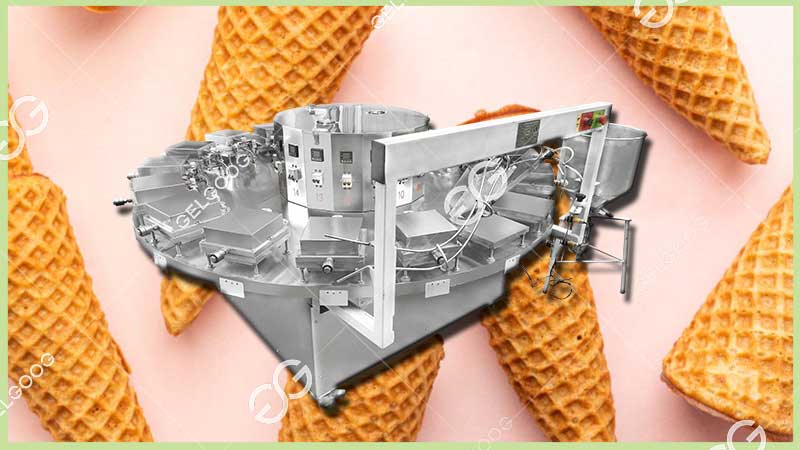

Industrial waffle cone makers are highly automated machines designed to efficiently produce large quantities of waffle cones. Here is a detailed description of how it works:
Ingredients and Batter Preparation
First, the ingredients for making waffle cones are prepared and mixed to form a smooth batter. This batter is usually a mixture of flour, sugar, eggs, butter and other seasonings. The batter is then transferred to a storage hopper or mixer to ensure that it is evenly mixed and ready for the next stage.
Batter Dispersion

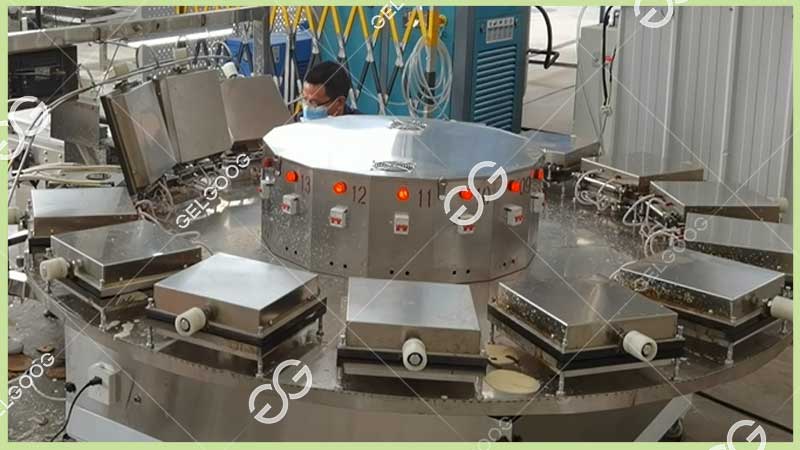

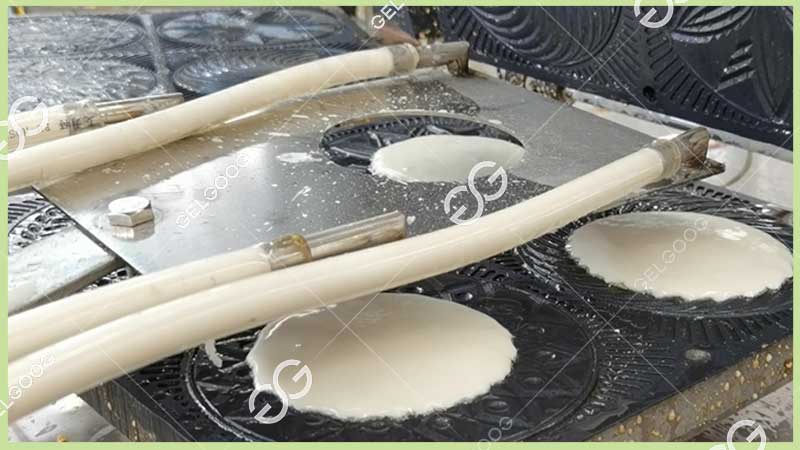

The batter is pumped from the storage hopper into a grouting device, which injects a precise amount of batter into each baking mold on a rotating baking plate. The molds are designed to form a grid pattern on the waffle, which helps with subsequent shaping.

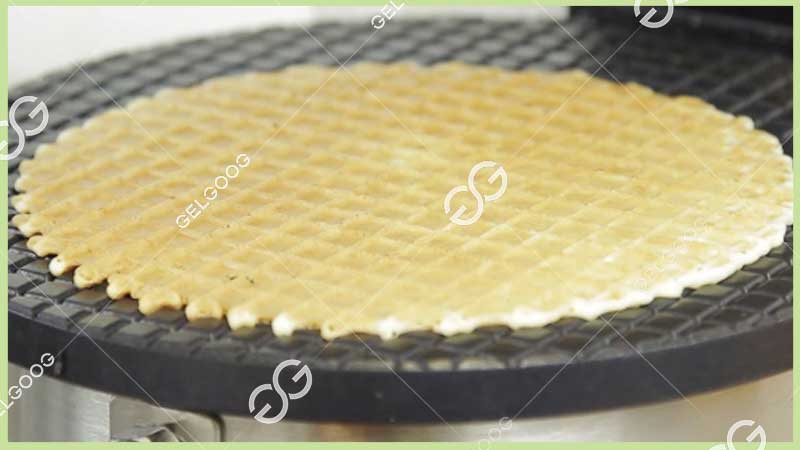

Baking Process
After pouring the batter into the mold, the upper cover of the baking box automatically closes and the batter begins to bake. The baking process is controlled by a PLC system to ensure consistent temperature and baking time. Baking time is usually about 1-2 minutes, depending on the thickness of the cone and the desired crispiness.
Cone Forming
After baking, the upper cover of the baking box is opened and the baked waffles are fed into the forming system. Here, the waffles are quickly rolled into a cone using a cone mold or roller. This process must be done while the waffles are still warm and soft to ensure that they form a perfect cone.
Cooling and Collection
The formed cones are then sent to a conveyor belt to cool and harden. After cooling, the cones are collected and packaged for distribution.
Advantages of Industrial Waffle Cone Machines
- High production capacity: These machines can produce up to 7,500 cones per hour and are suitable for large-scale production.
- Consistent quality: Automated control ensures that each cone is baked evenly.
- Versatility: In addition to waffle cones, these machines can also produce sugar cones, mini chocolate cones and other flavors.
- Energy saving: They are designed with efficient heat conduction and insulation to save energy.
Industrial waffle cone machines transform simple batter into uniform, high-volume, perfectly shaped cones through a tightly controlled, automated heating, pressing, forming and cooling process.
For plants supplying large retailers, ice cream brands or large caterers, understanding how waffle cone machines work is critical to achieving the scale, efficiency and consistent product quality required by the industrial dessert market.
